Working width: 200mm (8 inch) Total table length: 1800×230mm Cutter head blades: 4 pcs carbide blades Cutter head diameter: 70mm Cutter head speed: 5000rpm Max cutting depth per pass: 3mm Fence tilting range: 0°–45° adjustable Main motor power: 2.2kw / 3HP Voltage: 220V/380V, 50Hz Safety device: Emergency stop button + full safety guard Overall dimension: 1920×480×950mm Net weight: 185kg Standard Features Heavy-duty cast iron worktable for stable planing Adjustable aluminum fence for straight & bevel jointing Double safety protective cover to avoid accidental contact Low noise, smooth surface finishing for solid wood Ideal for furniture workshop, woodworking studio, carpentry processing

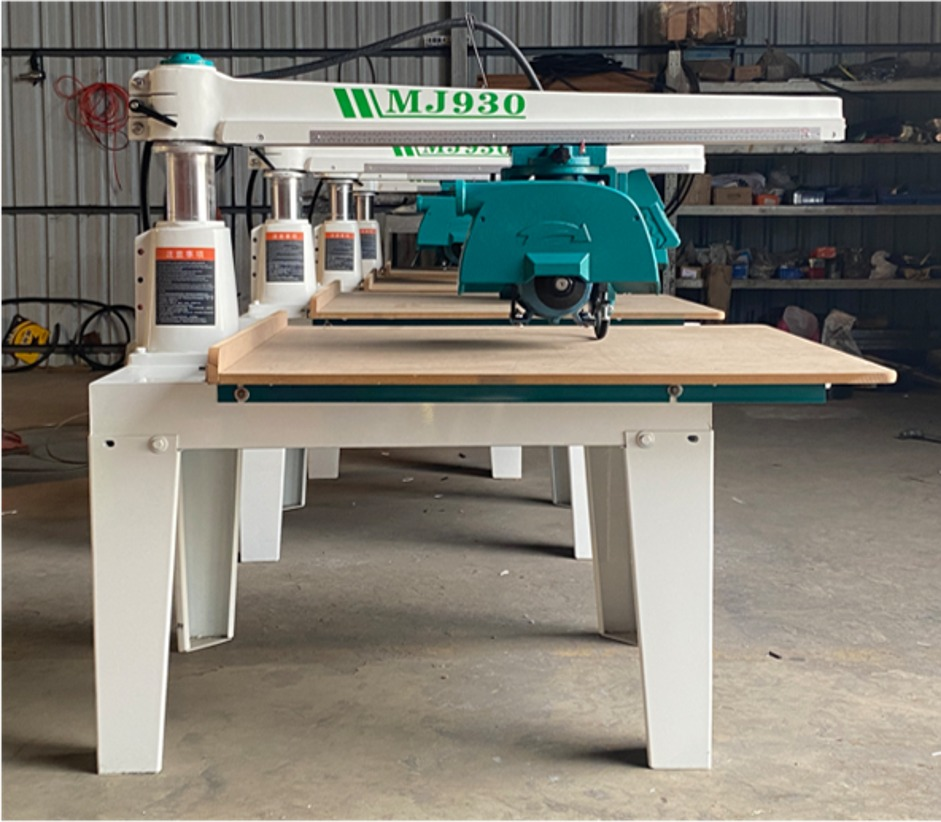

MJ930 Radial Arm Saw Technical Specifications Cutting Capacity: Max saw blade diameter: 350mm Max cross cutting width: 930mm Max cutting depth: 120mm Arm swivel angle: -45° ~ +45° Saw head tilting angle: 0°–45° for bevel cutting Spindle & Power Spindle speed: 2960rpm Main motor power: 2.2kW Voltage: 220V/50Hz Worktable & Structure: Worktable overall size: 1050×820mm Arm travel stroke: 930mm Operation mode: Manual pull feed Full safety blade guard for double safety protection Dimension & Weight: Overall machine size (L×W×H): 1450×1220×1700mm Net weight: approx. 280kg Core Features Wide radial arm for long timber cross cutting Multi-angle adjustable saw head for straight & bevel cut Stable cast iron table, smooth feeding Compact vertical stand structure, easy to install Widely used in furniture factory, carpentry workshop, solid wood processing

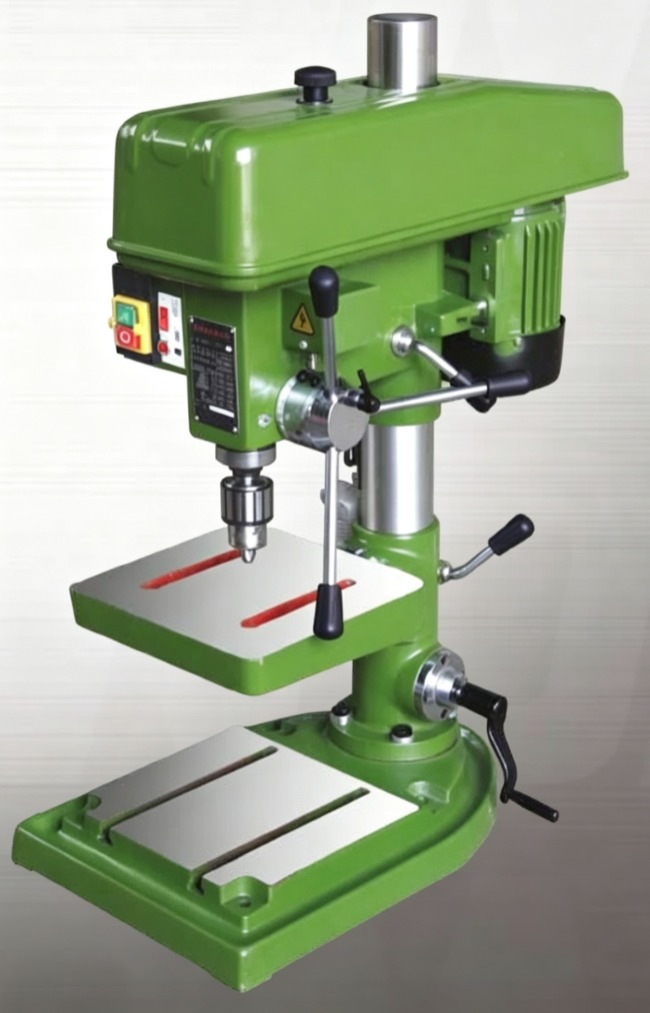

Max.Drilling/Tapping capacity: D:16mm / T:M12/M10 Diameter of column: 70mm Spindle travel: 100mm Distance spindle axis to column generating line: 193mm Max. Distance spindle nose to table: 315mm Max. Distance spindle nose to base: 556mm Spindle taper: MT2 Spindle speeds range: 480~4100 r/min Spindle speeds series: 5 speeds Dimension of work table surface: 200×230mm Dimension of base: 528×360mm Overall height: 1037mm Power of motor: 750W Gross Weight / Net Weight: 108kg / 90kg Packing dimension: 77×42×95 cm

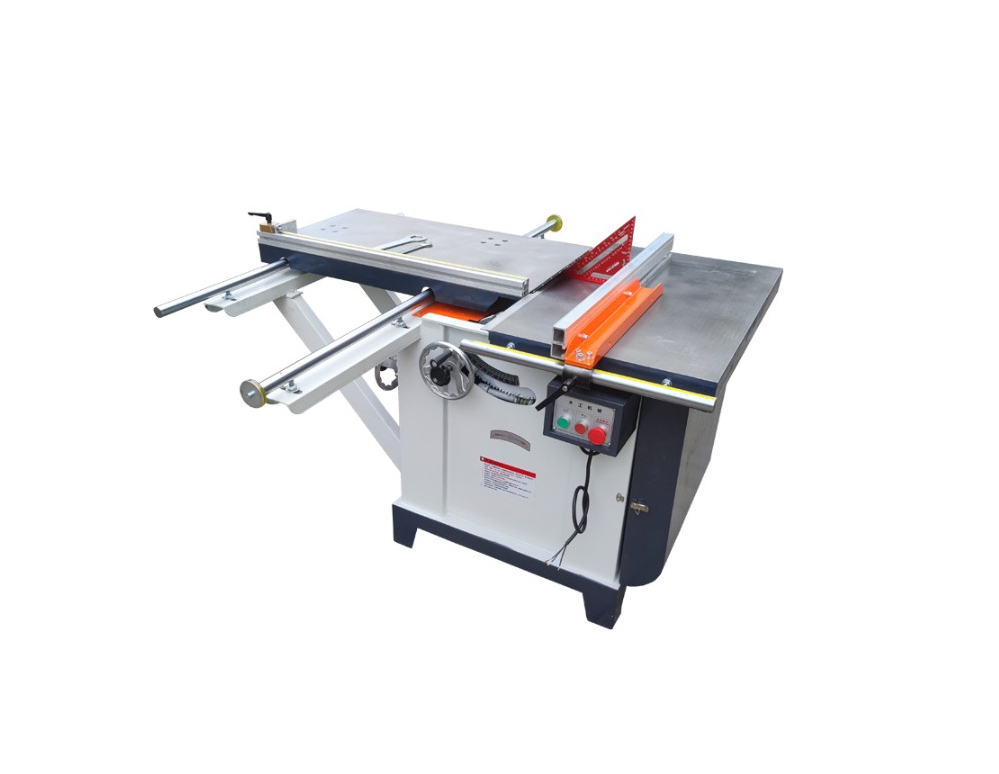

MJ113TB Tilting Arbor Sliding Table Saw Technical Specifications Saw Blade & Spindle Max saw blade diameter: Φ405mm Spindle diameter: Φ25.4mm Spindle speed: 4200r/min Arbor tilting range: 0°–45° Cutting Capacity Max cutting thickness at 90°: 95mm Max cutting thickness at 45°: 70mm Max sliding cutting length: 920mm Worktable Sliding table size: 715×600mm Fixed table size: 580×750mm Slide rail travel: 700mm Slide rail dimension: 30×1300mm Overall dimension (L×W×H): 1600×1300×890mm Total weight: 220kg Power System Total motor power: 3kW / 4HP Voltage: 380V/50Hz 3-phase (220V single phase optional) Machine Dimension & Weight Overall machine size (L×W×H): 1600×1300×890mm Net weight: 210kg Core Standard Features Tilting arbor design for straight & bevel cutting Double heavy-duty sliding rail for high cutting precision Large cast iron table for stable panel processing Emergency stop button + full saw blade safety guard Suitable for plywood, MDF, solid wood, furniture panel cutting

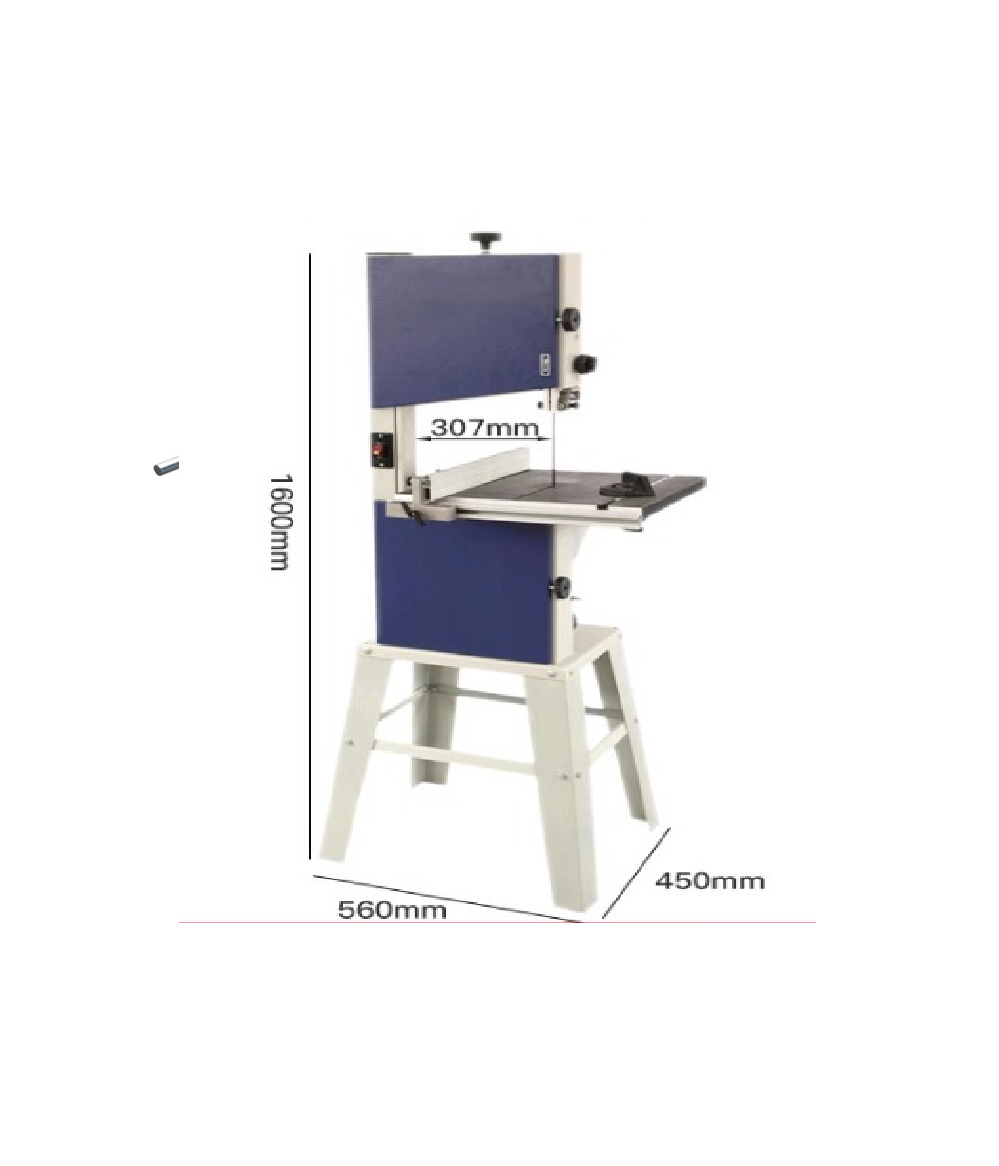

12" Band Saw Technical Specifications Motor Type: Induction Motor Input Voltage: 220V/50Hz Motor Power: 1100W Max Cutting Height: 180mm Throat Depth: 307mm Band Speed (50Hz): 370 / 800 m/min Band Length: 2240mm Table Size: 548×400mm Net Weight / Gross Weight: 75kg / 78kg Packing Dimension (L×W×H): 1125×360×490mm

Brand: Rockweld Specifications: - Power supply voltage: 1*230V, 50/60Hz - Rated input capacity: 4.5 KVA - Rated input current: 20 A - No-load voltage: 83 V - Output current range: 15-135 A - Duty cycle: 35% - Weight: 4.2 kg - Dimensions (L*W*H): 210*120*265 mm Features & Advantages: - IGBT high frequency inverter DC MMA - Single PCB style design - Hot arc start / arc force / anti-stick - Lift TIG welding - LCD Display Standard Accessories: - Welding cable 1 m with 200A earth clamp - Welding cable 1.5 m with 200A electrode holder Optional Accessories: - BMC (plastic box) - Dual voltage - E6010 socket - Welding helmet

Brand: Rockweld Specifications: - Power supply voltage: 1*230V, 50/60Hz - Rated input capacity: 4.8 KVA - Rated input current: 21 A - No-load voltage: 83 V - Output current range: 15-175 A - Duty cycle: 35% - Weight: 4.5 kg - Dimensions (L*W*H): 210*120*265 mm Features & Advantages: - IGBT high frequency inverter DC MMA - Single PCB style design - Hot arc start / arc force / anti-stick - Lift TIG welding - LCD display Standard Accessories: - Welding cable 1 m with 200A earth clamp - Welding cable 1.5 m with 200A electrode holder Optional Accessories: - BMC (plastic box) - Dual voltage - E6010 socket - Welding helmet

Brand: Rockweld Specifications: - Power supply voltage: 1*230V, 50/60Hz - Rated input capacity: 6 KVA - Rated input current: 26 A - No-load voltage: 83 V - Output current range: 20-205 A - Duty cycle: 35% - Weight: 5.5 kg - Dimensions (L*W*H): 290*165*265 mm Features & Advantages: - IGBT high frequency inverter DC MMA - Single PCB style design - Hot arc start / arc force / anti-stick - Lift TIG welding - LCD display Standard Accessories: - Welding cable 1 m with 200A earth clamp - Welding cable 1.5 m with 200A electrode holder Optional Accessories: - BMC (plastic box) - Dual voltage - E6010 socket - Welding helmet

Specifications: - Power supply voltage: 1*230V, 50/60Hz - Rated input capacity: 9 KVA - Rated input current: 39 A - No-load voltage: 85 V - Output current range: 20-250 A - Duty cycle: 35% - Weight: 7.5 kg - Dimensions (L*W*H): 290*165*265 mm Features & Advantages: - IGBT high frequency inverter DC MMA - Single PCB style design - Hot arc start / arc force / anti-stick - Lift TIG welding - LCD Display Standard Accessories: - Welding cable 1 m with 200A earth clamp - Welding cable 1.5 m with 200A electrode holder Optional Accessories: - BMC (plastic box) - Dual voltage - E6010 socket - Welding helmet

Specifications: - Brand: Rockweld - Power supply voltage: 1*230V, 50/60Hz - Rated input capacity: 5.4 KVA - Rated input current: 20 A - No-load voltage: 58 V - Output current range: 10-120 A - Duty cycle: 35% - Weight: 4.2 kg - Dimensions (L*W*H): 315*130*300 mm Features & Advantages: - Half bridge IGBT high frequency inverter DC MMA - Single and SMD PCB style design - Light weight Standard Accessories: - Welding cable 1 m with 200A earth clamp - Welding cable 1.5 m with 200A electrode holder - Welding helmet, brush & chipping hammer Optional Accessories: -LCD display - BMC

Specifications: - Brand: Ezitech - Model: EL.3123 - Main source voltage: 230/380 VAC, maximum load 10 A - Protection: NFB, three phase ELCB, three phase MCB, single phase ELCB, single phase MCB, thermo relay - Control: contactor, supply contactor, timer delay-on, selector switch, push-button change switches, change-over switch - Machines: single phase AC machine, three phase squirrel cage AC machine - Lighting: indicator lamps, lamp socket, incandescent lamp 230 VAC/40 W, fluorescent lamp 230 VAC/20 W, fluorescent lamp sockets (left and right), fluorescent lamp ballast - Wiring devices: single switch, series switch, Schuko socket, capacitive load - Meters: voltmeter, ammeter - Accessories: safety connecting leads (red, yellow, blue), safety connecting cross

Specifications: - Brand: Ezitech - Model: EL.3124 - Power supply: AC 220V/50Hz, output DC 24V/2A - Program memory: 10K steps - Data memory: 32K words - Interrupt inputs: 6 - High speed counter DC inputs: 36 inputs - DC outputs: 24 outputs - Analog control: 1 control - Analog input: 1 input - Not isolated PID control instruction - Communication: built-in USB, serial communication, Ethernet - I/O expansion - Modules: digital expansion, analog expansion, relays, DC input simulator, logical LED display, traffic light model

Specifications: - Brand: Ezitech - Model: EL.3052 - Purpose: For programs focused on developing fundamental electrical and electronics skills, covering topics and components relevant to today's industry - Minimum configuration: resistors, capacitors, inductors, semiconductors, logic gates, analog integrated circuits, electromechanical, optoelectronics, power supply and carrier, processor module, spare parts kit - Includes: user manual and experiment modules

Specifications: - Brand: Ezitech - Model: EL.3016 - Purpose: For understanding DC and AC electrical circuits, power supply, digital logic and digital circuits - Input power: AC 220V, 50/60 Hz - Output: adjustable DC voltage - Base unit: 1 unit with built-in power supply, 32 circuit modifications (CM), fault switches, and circuit board with 15 V power source - Power modules: training platform with DC and AC voltage stabilisation module, AC 220V main control power box, AC 220V power box, stabilised power supply module, adjustable DC power supply module, AC power supply - Signal and measurement: signal generator module, measuring instrument module (multimeter) - Experiment modules: mask plate hanging line experiment module, analog and digital circuit experiment box, digital chip modules 14P, 16P, 18P, 20P, comprehensive test box module, basic electronic components module - Accessories: test cables and power cable, terminal test cables, electronic chips, electronic components - Includes: manual and experiment modules

Specifications: - Brand: Ezitech - Model: EL.3106 - Purpose: For training on audio systems, amplification, sound mixing and tone control - Input voltage: AC 220V / 50Hz - Output voltage: DC +15V and -15V - Frequency response: 20 Hz - 50 kHz - Power type: OCL - Output power: 20W / 4W - Equipped with: loudspeaker, dummy load, audio level meter - Includes: user manual and experiment modules

Specifications: - Bandwidth: 20 MHz - Channels: dual channel - Sweep magnification: 10 times - Triggering: ALT triggering function and TV synchronization - Display modes: X-Y mode

Specifications: - Screen size: 7 inch - Power: 100 - 240 V, 50/60 Hz, 50 W (max) - Channels: oscilloscope 2 CH, signal generator 1 CH - Bandwidth: 150 MHz - Sample rate: 150 MHz / 1 GSa/s, 25 MHz / 200 MSa/s - Vertical range: 2 mV/div - 10 V/div - Vertical resolution: 8 bit

Specifications: - Max output frequency: 10 MHz - Max sampling rate: 125 MSa/s - Vertical resolution: 14 bit - Waveform memory: 16 Kpts - Channels: 1

Specifications: - Pattern generator designed for use with PAL TV systems - Test patterns: colour bars, white raster, dots, crosshatch, vertical/horizontal lines - Use: TV servicing and adjustment - Preset IF frequency: 38.9 MHz - VLow: 55.25 MHz - VHigh: 175.25 MHz - RF output: 10 mVrms at 75 Ω impedance

Specifications: - Capacity: 6 L - Ultrasonic power: 180 W - Heating power: 300 W - Input voltage: 200-240 V, 50 Hz - Vibration frequency: 40,000 Hz - Temperature: 0-80°C Dimensions: - Machine body: 325 x 175 x 275 mm - Tank: 300 x 150 x 150 mm - Filter basket: 290 x 145 x 120 mm - Drain pipe inner diameter: 18 mm - Power cable length: 1.5 m
